TS150

Compatible with most Cantruss type fittings and accessories for mechanical applications.

Gauge:
18 ga
Dim (W X H):
1.625" x 1.625" (1 5/8" x 1 5/8")
Uniform Load:
1200lb

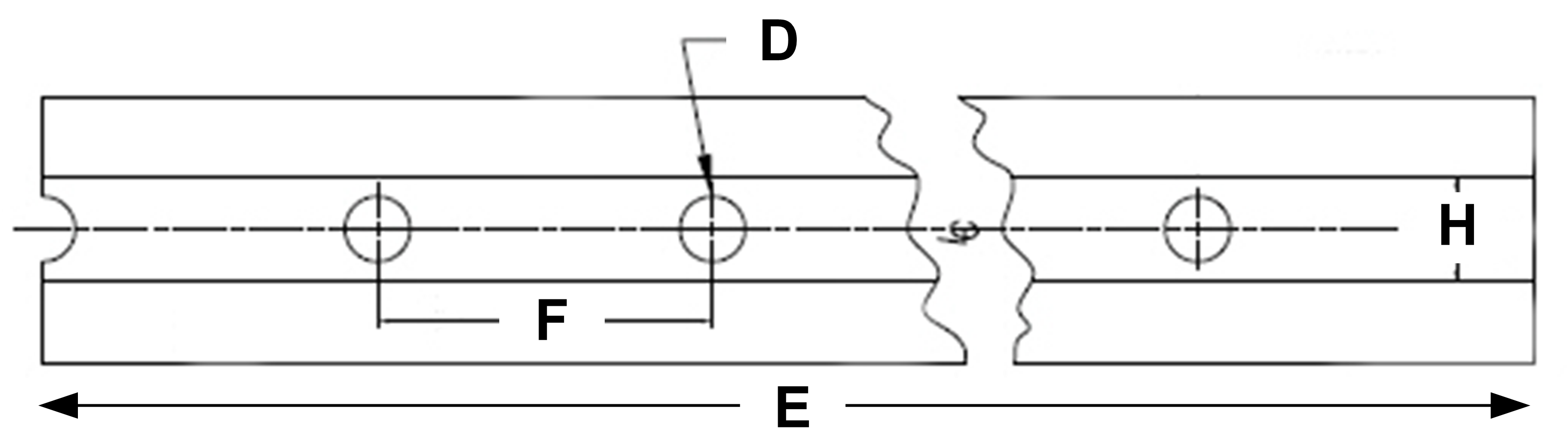

X = 1.625" (1 5/8")
Y = 1.625" (1 5/8")
D = 25/64" (0.390")
E = 120" (10ft)
F = 2"
H = 5/8 (0.625")

Sectional Properties

Model Linear Weight Area of Section X-X Axis Y-Y Axis
  lbs/ft in L in4 S in3 R in L in4 S in3 R in
TS150 0.863 0.256 0.076 0.084 0.545 0.112 0.140 0.661

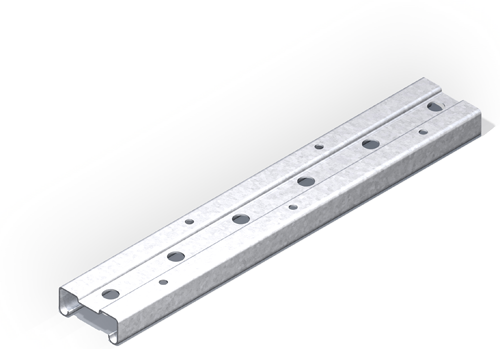

TS2-18
TS2-22

For smaller loads and standard suspension applications.

TS2-18

Gauge:
18 ga
Dim (W X H):
2.146" (2 3/20") x 0.75" (¾")
Uniform Load:
290 lb

TS2-22

Gauge:
22 ga
Dim (W X H):
2.146" (2 3/20") x 0.75" (¾")
Uniform Load:
Up to 200 lb*

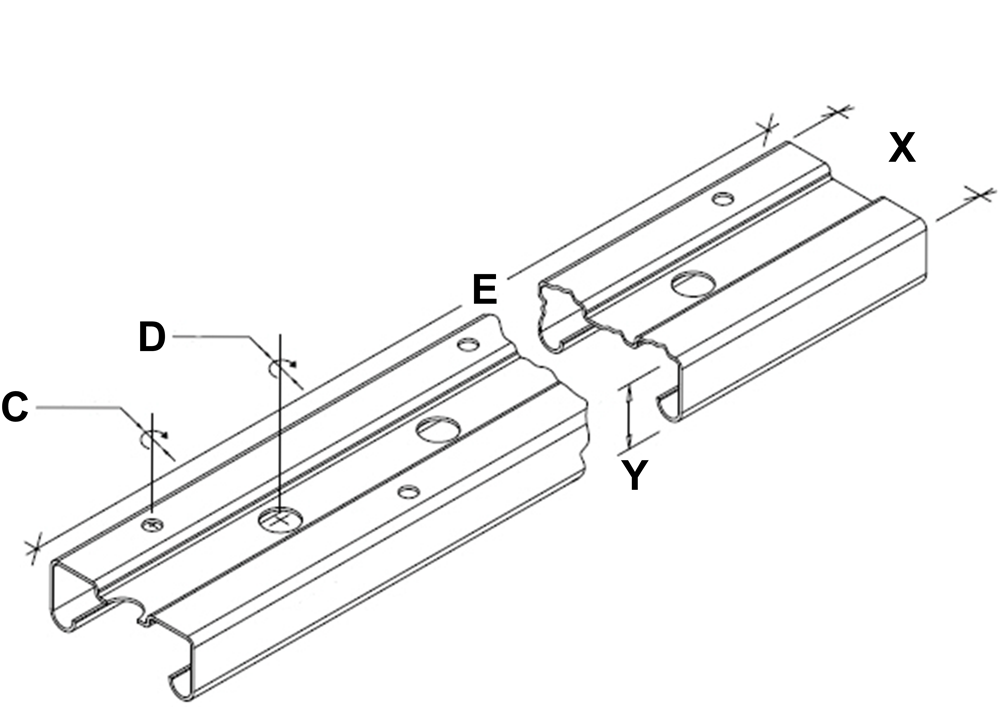

X = 2.146" (2 3/20")
Y = 0.75" (¾")
C = 0.188" (3/16")
D = 0.313" (5/16")
E = 96" (8ft)
F = 2" (17/100 ft)
G = 4" (1/3 ft)
H = 0.563" (9/16")
J = 1.188" (1 3/16")

Sectional Properties

Model Linear Weight Area of Section X-X Axis Y-Y Axis
  lbs/ft in L in4 S in3 R in L in4 S in3 R in
TS2-18
TS2-22
